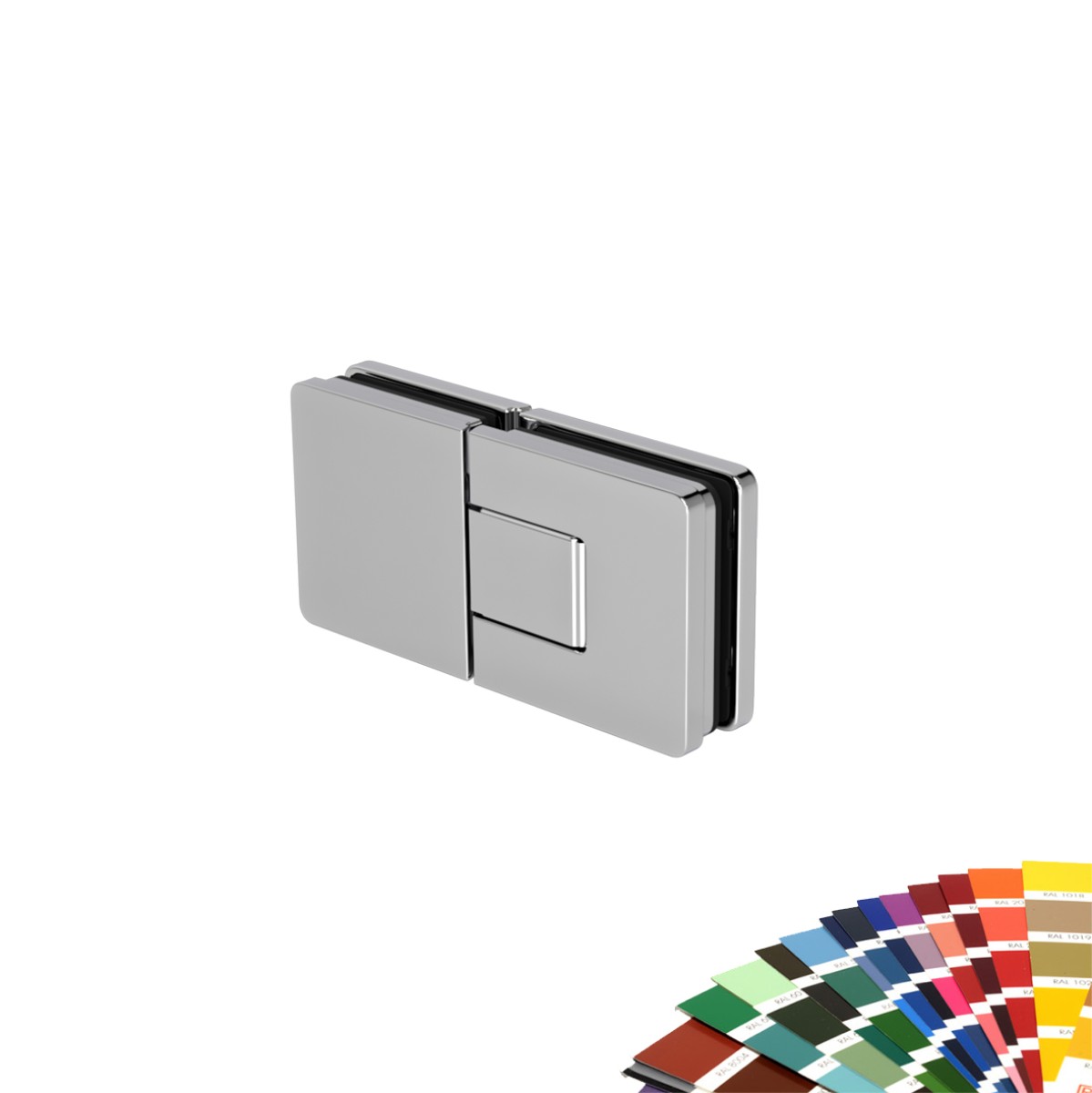

70256.399 HINGE COLORE GL/GL 180° 8MM IN RAL??
The Colore swing shower hinge has been specially developed to feature a high-quality powder coating, fully tailored to the end user’s requirements. Suitable for 8 mm glass panels weighing up to 45 kg. The hinge is easily adjustable and features a self-closing mechanism in the final 20 degrees.
Configureer uw product
Choose a standard RAL-colour and finish
Choose a Special RAL-colour
Not in stock
Price per Piece
Specificaties
Article number MK.70256.399
Colour
Special RAL-colourMaterial
Brass
Glass thickness
8mm
Mounting (to/on)
Glass-Glass180°
Max. door/panel weight
45kg by pair
Max. door/panel width
1000mm
Adjustable zero point
YesSelf-closing
From 20°
Packaging unit
1 piece
Downloads
 |

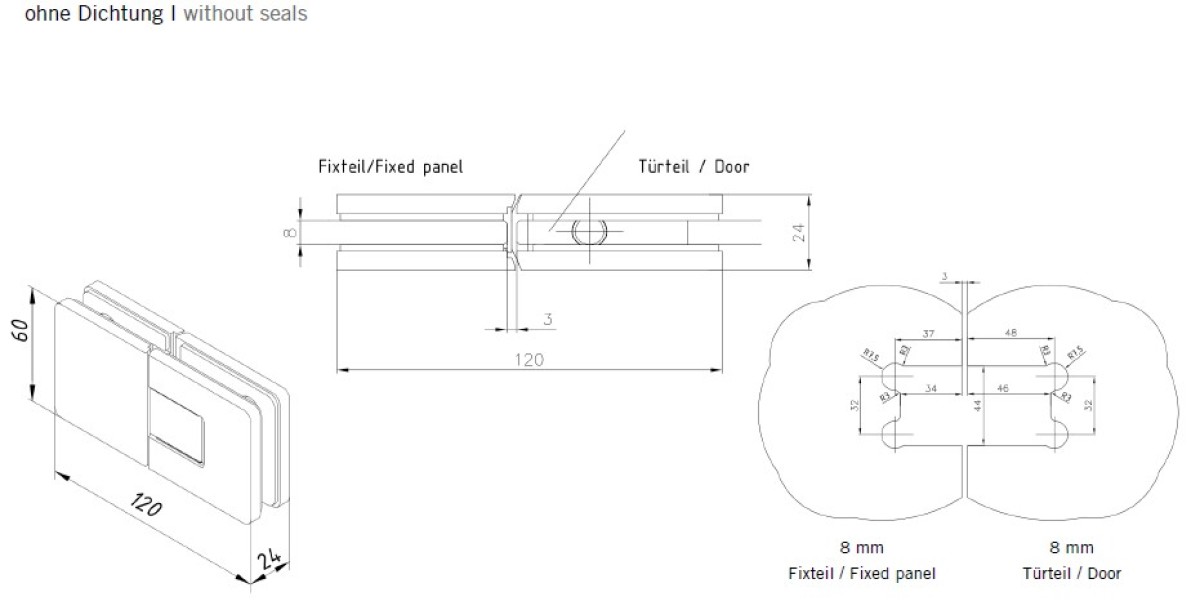

DWG |
