E-SPACE WALL TBV GLASS CLAMP L=2000MM RAL?

Automatic sliding door system for indoor application

Advantages and arguments:

• New application possibilities, innovative
• Barrier-free access with maximum convenience
• Operation as a single or synchronised system (additional connecting cable required 03-115-100-050
• Smooth and quiet operation thanks to magnetically driven plastic rollers with ball bearings in the aluminium profile
• Certification by TÜV Rheinland and SGS ensures maximum safety as the doors can be easily moved despite a power failure
• Energy-efficient operation means there is no risk of entrapment and the magnetic field used is harmless to health
• Quick and easy installation and immediately ready for use
• Ready-to-connect kit for quick installation
• Commissioning via Plug&Play (plug in and go)

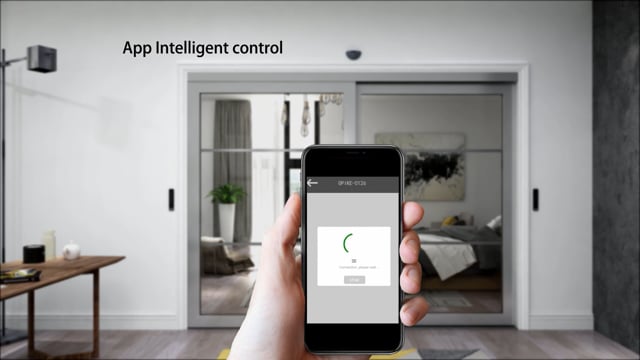

• Standard operation of the doors as an app (iOS, Android) or with Cleanswith by hand movement (no touching)
• Additional multifunctional connection options

Data and functions:

• For 1 wooden or glass door up to 100 kg (order 2 sets for 2 wings)
• Universal door connection for wooden doors, glass doors, framed doors, etc.
• Door thickness: wood 30-40 mm, glass 8-10 mm
• Height adjustment ± 3 mm
• Cushioned on both sides
• Running rail cover
• Possible applications in the private sector: office, kitchen, bathroom, living, dining and bedroom areas, passageways
• Public applications: hotels, catering, barrier-free spaces
